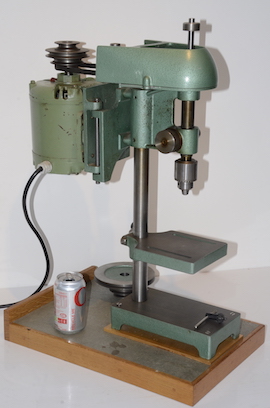

Can't quite believe these lovely Cowells pillar drills turned up from one owner. Not sure how many are made but I don't think I will come across another in such great condition as these. We have two 3/8" Type 6-MD with single phase motors (Shown above), and a larger 1/2" Type 8-MD shown on another page on my website.
For info the 6-MD is the same size as the 3-MD but has the additional pulley to enable 6 speeds, rather than just 3.
For the model engineer who likes small, quality items.
Approx dimensions for the 3/8" 6-MD:
- 3 7/16" throat.
- 8.5" max depth of chuck to table.
- 10.5" max depth of chuck to base.
- 1.25" diameter of column.
- 6" x 5 1/2" working area of table.
- 9.25" x 5.25" area of base
- 2" quill travel, feed of drill.
- 24" overall height.
- resettable dial for quill
- 0-3/8" No 32 Jacobs chuck with key.
- 6 Speeds: 220, 385, 675, 800, 1400, 2500 rpm.
- Weight , less motor is 45 Lbs.
We also have a 1/2" Capacity Type 8-MD version, see this on the previous web page. Spec below.
Approx dimensions for the 1/2" 8-MD:
- 5.5" throat.
- 9.5" max depth of chuck to table.
- 12.5" max depth of chuck to base.
- 2" diameter of column.
- 9.5" x 9" working area of table.
- 13.5" x 9" area of base
- 3" quill travel, feed of drill.
- 34" overall height.
- resettable dial for quill
- 0-1/2" Jacobs chuck with key.
- 6 Speeds: 150, 466, 700, 450, 1400, 2100rpm.
- Weight , less motor is 107 Lbs.
The Cowells 6-MD pillar drill on the wooden base measures 18" x 12".
Price: £ 1150 for each of the 6-MD machine shown above. (no additional VAT to add)
Click here to see other available lathes
Call Howard on 01225 812155 or 07753 610420
Alternatively email: sales@myford-lathes.com
